DES-1008A

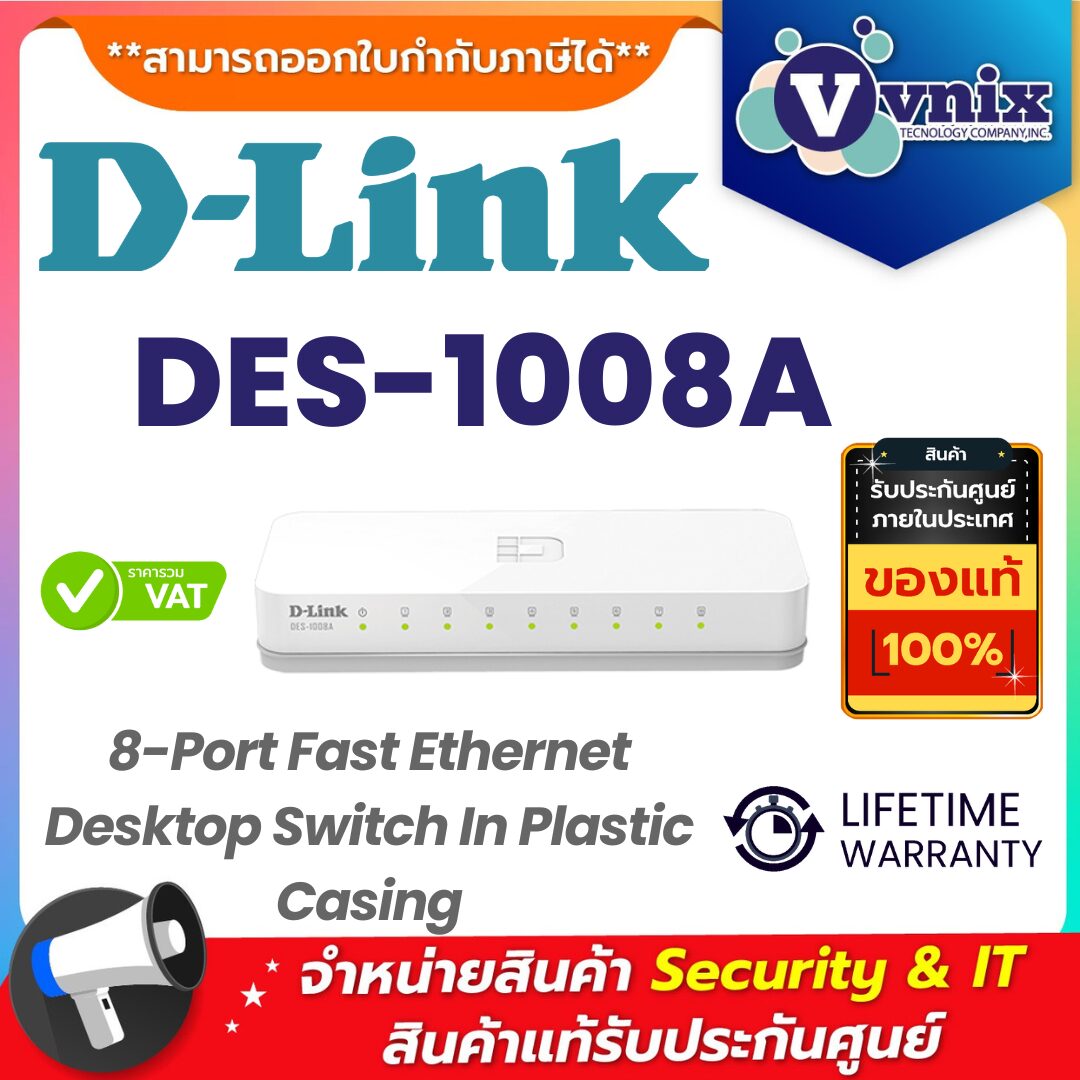

Switching Hub D-LINK (DES-1008A) 8 Port (5″)
Brand.D-LINKModel.DES-1008ANetwork Interface.10BASE-T
– UTP CAT 3/4/5/5e (100m max.)
– EIA/TIA-586 100-ohm STP (100m max.)
100BASE-TX
– UTP CAT 5/5e (100m max.)
– EIA/TIA-568 100-ohm STP (100m max.)Standards and Protocols.CSMA/CDTransmission Method.Store-and-forwardMAC Address Table.2KForwarding Rate.- Ethernet : 14,880 pps Per Port
– Fast Ethernet : 148,800 pps Per PortPacket Buffer Memory.57KBytes Per DeviceSwitch Fabric.1.6 Gbps switching fabricLED Indicators.-Per Port : Link/Activity
-Per Device : Power.MAC Address Learning : Automatic UpdateFeatures.- Green Ethernet
– 1.6 Gbps switching fabric
– Auto MDI/MDIX crossover for all ports
– Secure store-and-forward switching scheme
– Compliance with IEEE802.3az EEE power saving
– Full/half-duplex for Ethernet/Fast Ethernet speeds
– IEEE 802.3x Flow Control
– Plug-and-play installation
– RoHS compliant
– Supports 2048-byte Jumbo FramesPower Supply.5 V/0.55 A Power AdapterPower Consumption.Power On (Standby): DC input: 0.36 watts, AC input: 0.6 watts
Maximum: DC input: 1.78 watts, AC input: 2.19 watts
Link Up: EEE mode: DC input: 0.75 watts AC input: 1.1. wattsEnvironment.Temperature
Operating: 0 to 40 °C (32 to 104 °F)
Storage: -10 to 70 °C (14 to 158 °F)
Humidity Operating: 10% to 90% non-condensing
Storage: 5% to 90% non-condensing-.MTBF : 2,137,319 hours
Media Interface Exchange : Auto MDI/MDIX adjustment for all ports
RAM Buffer : 96 KB per deviceCertifications.- FCC Class B
– ICES-003 Class B
– CE Class B
– C-Tick Class B
– cUL
– LVDDimensions.128 x 68.5 x 25.4 mm (5.0 x 2.7 x 1.0 inches).8 x 10/100Mbps Fast Ethernet Ports.Heat Dissipation
– Power On (Standby): AC input:2.0472 Btu/h
– Maximum: AC input:7.47228 Btu/h.Packet Filtering/Forwarding Rates
Ethernet: 14,880 pps per port
Ethernet: 14,880 pps per portWarrantyLT.
