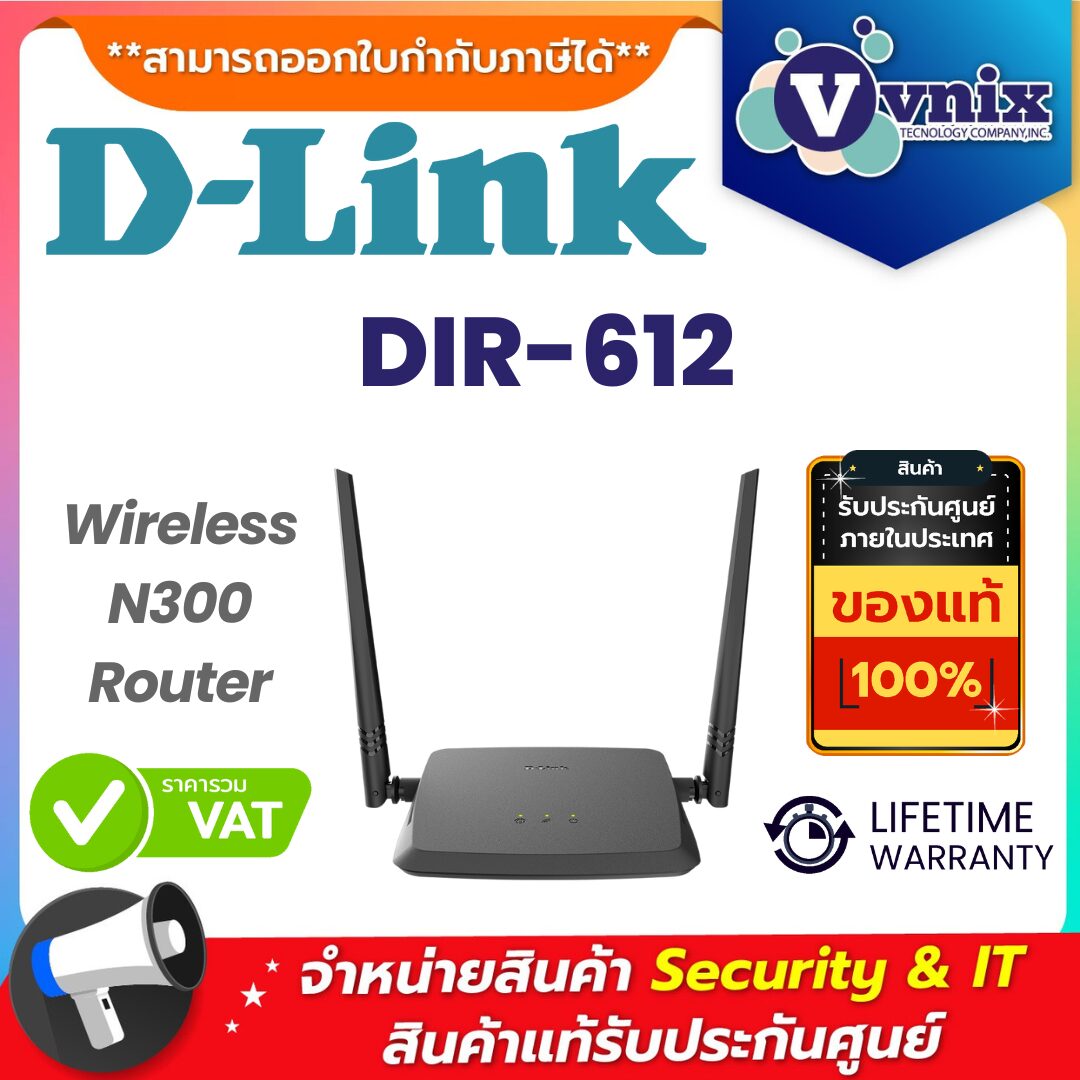

DIR-612
Wireless N300
Standards and Protocol IEEE 802.11n/g/b
IEEE 802.3
IEEE 802.3u
IEEE 802.3x
Antenna x2 5 dBi external antenna
Interface Wireless N 300
x1 10/100 WAN (Internet) port
x4 10/100 LAN ports
Wireless Features Web setup wizard
UPnP support
Active firewall – Network Address Translation (NAT)
Repeater mode
Power Supply Input: 100 to 240 V AC, 50/60 Hz
Consumption: 12 V 0.5 A
Dimensions 175 x 150 x 31 mm (6.89 x 5.9 x 1.22 inches)
Certifications CE
FCC
Wi-Fi Certified
Wireless Security WPA & WPA2 (Wi-Fi Protected Access)
Wi-Fi Protected Setup (WPS) – PIN
Support Operating System Windows 8/7/Vista/XP SP3, or Mac OS X 10.4 or higher
Microsoft Internet Explorer 7, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser
Network interface card
Cable or DSL modem
Subscription with an Internet Service Provider
Storage Temperature -20 to 65 °C (-4 to 149 °F)
Operating Temperature Operating: 0 to 40 °C (32 to 104 °F)
