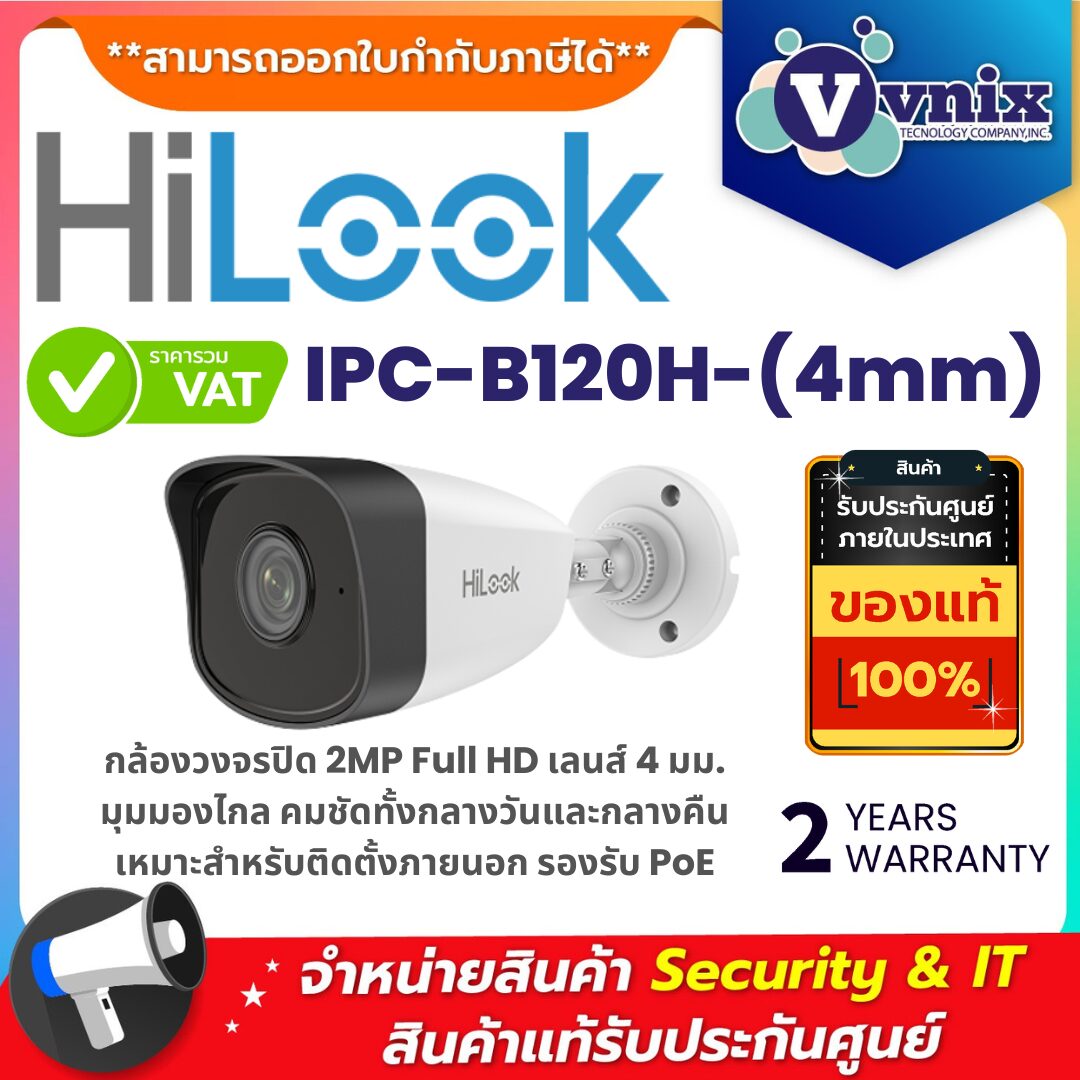

IPC-B120H-(4mm)

IPC-B120H-(4mm)

รายละเอียดสินค้า

Camera
Image Sensor: 1/2.8″ Progressive Scan CMOS
Min. Illumination: Color: 0.01 Lux @(F1.2, AGC ON), 0.028Lux @ (F2.0, AGC ON)
Shutter time: 1/3 s to 1/100, 000 s
Slow shutter: Support
Lens: 2.8 mm, horizontal FOV 103°, vertical FOV 59°, diagonal FOV 118°
4 mm, horizontal FOV 86°, vertical FOV 46°, diagonal FOV 102°
6 mm, horizontal FOV 54°, vertical FOV 30°, diagonal FOV 62°
Lens Mount: M12
Adjustment Range: Pan: 0° to 360°, tilt: 0° to 180°, rotation: 0° to 360°
Day& Night: IR cut filter with auto switch
Wide Dynamic Range: Digital WDR
Digital noise reduction: 3D DNR
Compression Standard
Video Compression: H.265+/H.265/H.264+/H.264/MJPEG
H.264 code profile: Baseline Profile/Main Profile/High Profile
Video bit rate: 32Kbps~8Mbps
Max. Image Resolution: 1920 x 1080
Frame Rate: 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720)
60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub Stream: 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Image Enhancement: BLC, 3D DNR
Image Settings: Brightness, saturation, contrast, sharpness are adjustable via web browser or client software
BLC: Support
Day/Night Switch: Auto, scheduled
Network
Alarm Trigger: Motion detection, video tampering alarm, illegal login
Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP,
802.1X, QoS, IPv6, UDP, Bonjour
General Function: Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark
Interface
Communication Interface: 1 RJ45 10M/100M self-adaptive Ethernet port
General
Operating Conditions: -30 °C to 50 °C (-22 °F to 122 °F), humidity: 95% or less (non-condensing)
Power Supply: 12 VDC ± 25%, PoE (802.3af Class3)
Power Consumption: 12 VDC, 0.4 A, Max: 5 W
PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.13 A, Max: 7 W
Weather Proof: IP67
IR Range: Up to 30m
Dimensions: Camera: ? 70 mm × 191.3mm (? 2.7″ × 7.5″)
With package: 216 mm × 121 mm × 118 mm (8.5″ × 4.8″ × 4.6″)
Weight: Without –M model:
Camera: Approx. 280 g (0.6 lb.)
With package: Approx. 530 g (1.2 lb.)
-M model:
Camera: Approx. 395 g (0.9 lb.)
With package: Approx. 631 g (1.4 lb.)

*** จัดส่งฟรีทั่วประเทศ มั่นใจบริการหลังการขาย ให้คำปรึกษาดูแลตลอดอายุการใช้งาน, สินค้ารับประกันศูนย์ยาวนาน 2 ปี/ลูกค้าสามารถส่งเคลมสินค้ากลับมาที่บริษัทฯได้
