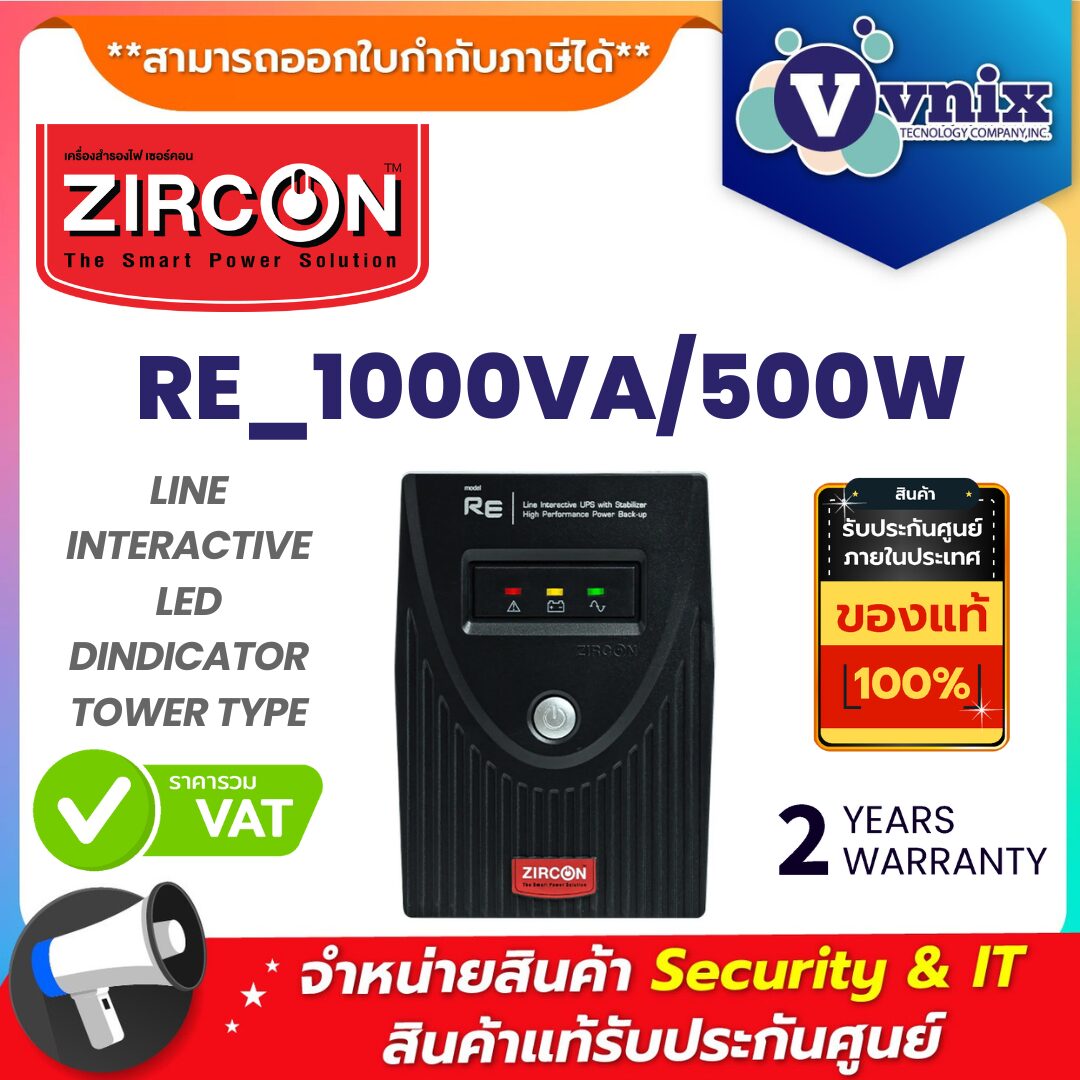

RE_1000VA/500W

Rating VA
WATT 1000VA
500W
Input Voltage
Frequency 220 VAC +/-25%
50Hz. +/-10%
Output Voltage
Frequency
Wave Form 220 VAC +/-10%(AVR), +/-5%(Battery)
50Hz. +/-0.1%
Modified Sine Wave, Simulate Sine Wave
System Protection System Design
Transfer Time
Surge Energy Dissipation
Noise Filter
Overload & Short Circuit Line Interactive UPS with Stabilizer, Microprocessor Control
Typical 4-6 ms.
320 Joules (6500A)
EMI Suppression
Reset Fuse Protection
Battery Type
Battery
Recharge Time
Backup For Computer 1 Set Maintenance Free Sealed Lead-acid Battery
ZIRCON 1 x 12V 7.8Ah x 1 Unit
4-6 Hours (90% After Fully Discharged)
Backup Time 15-30 Min. (Depend on loads)
Indicator LED Display Normal, Battery, Battery Low, Battery Replace, Charge, UPS Fault
Environment Ambient Temperature
Audible Noise
Relative Humidity
Safety
Electromagnetic Compatibility -10 to +40 ºC
< 45db(1 Meter)
95% (Non-Condensing)
EN 50091-1-1
EN 50091-2
Standard Regular Approvals TISI1291:2553, 2555, ISO9001:2015, ISO14001, CE, FCC, RoHS
Dimensions WxDxH (mm.) 101x291x143
Weight Kilogram 4.50kg.
