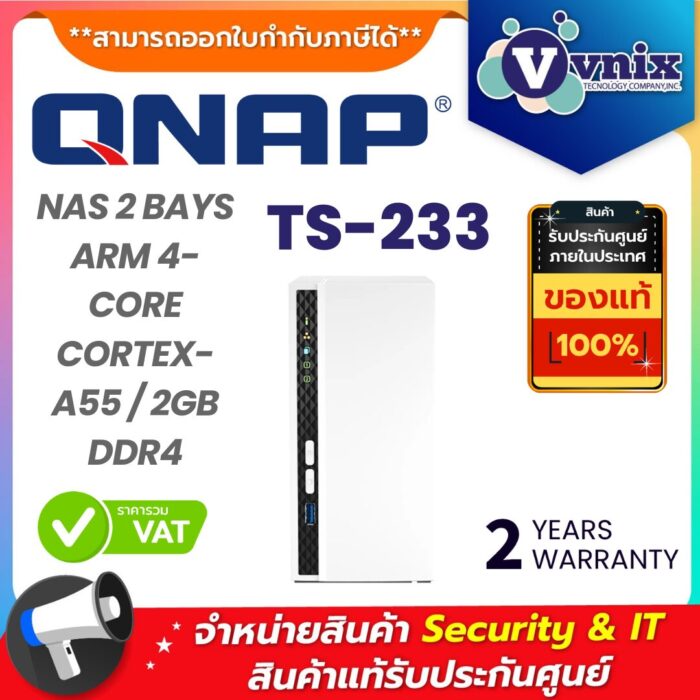

- TS-233
- CPU ARM 4-core Cortex-A55 2.0GHz processor
- CPU Architecture 64-bit ARM
- Floating Point Unit Yes
- Encryption Engine Yes
- System Memory 2 GB, not expandable
- Note: Reserves some RAM for use as shared graphics memory.
- Maximum Memory 2 GB, not expandable
- Flash Memory 4 GB (Dual boot OS protection)
- Drive Bay 2 x 3.5-inch SATA 6Gb/s, 3Gb/s
- Drive Compatibility 3.5-inch SATA hard disk drives
- 2.5-inch SATA hard disk drives
- 2.5-inch SATA solid state drives
- Hot-swappable Yes
- Gigabit Ethernet Port (RJ45) 1
- Wake on LAN (WOL) YES
- Jumbo Frame Yes
- USB 2.0 port 2
- USB 3.2 Gen 1 port 1
- Form Factor Tower
- LED Indicators System Status, LAN, USB, HDD1~2
- Buttons Power, Reset, USB Copy
- Dimensions (HxWxD) 188.64 × 90.18 × 156.26 mm
- Weight (Net) 1.11 kg
- Weight (Gross) 1.95 kg
- Operating temperature 0 – 40 °C (32°F – 104°F)
- Storage Temperature -20 – 70°C (-4°F – 158°F)
- Relative Humidity 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
- Power Supply Unit 65W Adapter, AC 100-240V
- Power Consumption: HDD Sleep Mode 3.43 W
- Power Consumption: Operating Mode, Typical 10.81 W
- Tested with drives fully populated.
- Fan 1 x 80mm, 12VDC
- System Warning Buzzer
- Max. Number of Concurrent Connections (CIFS) – with Max. Memory 200
- Warranty 2 year
