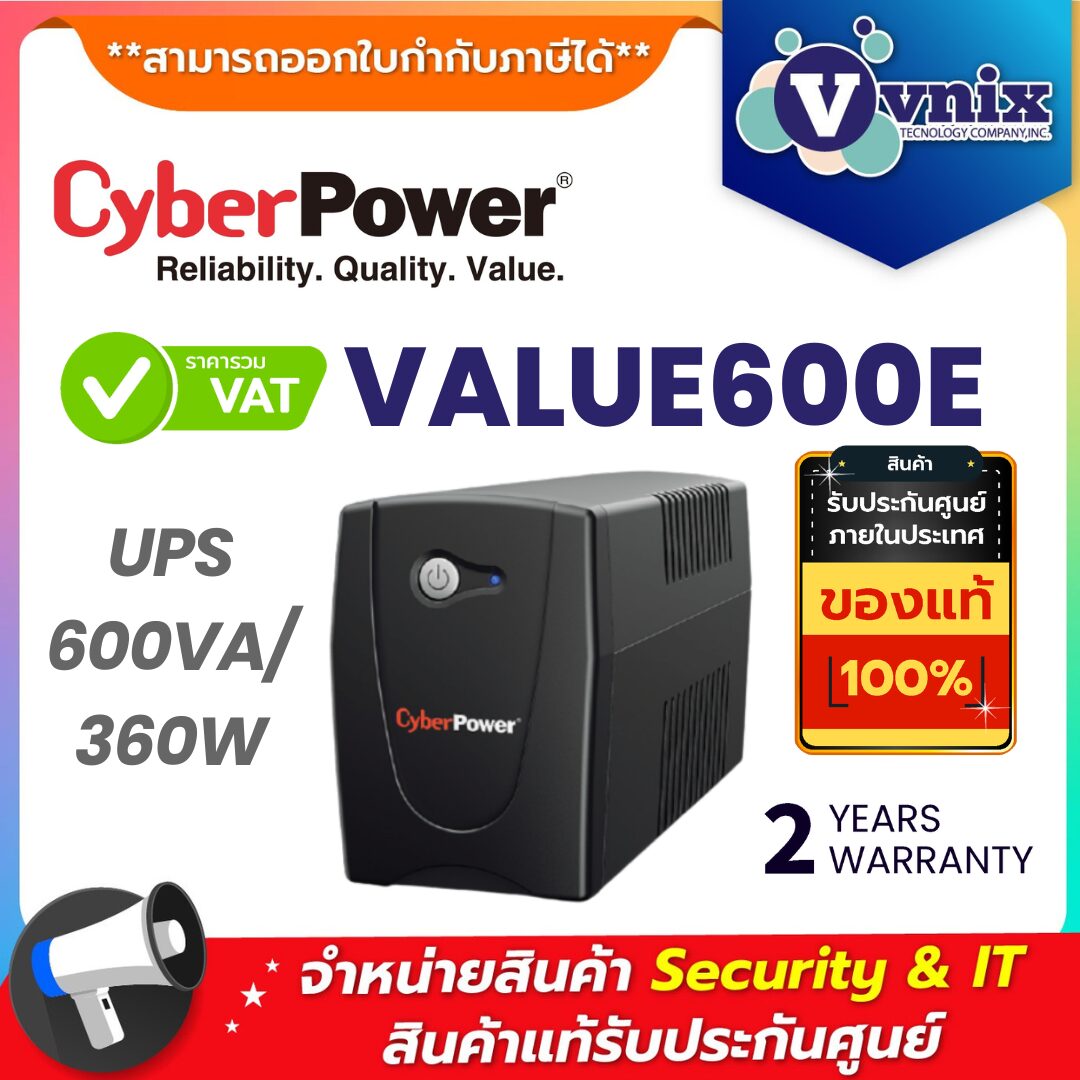

VALUE600E

VALUE600E

รายละเอียดสินค้า

GENERAL
Phase
Single Phase
UPS Topology
Line-interactive
Energy Saving Technology
GreenPower UPS™ Bypass Technology

INPUT
Nominal Input Voltage ( Vac )
230 ± 10%
Input Voltage Range ( Vac )
165 ~ 280
Input Frequency ( Hz )
50 ± 5
60 ± 5
Input Frequency Detection
Auto-sensing
Rated Input Current ( A )
2.72
Input Connector Type
IEC C14
Detachable Power Cord Plug Type

NEMA 5-15P
Power Cord Length (ft.)
6
Power Cord Length (m.)
1.8

OUTPUT
Capacity (VA)
600
Capacity (Watts)
360
On Battery Waveform
Simulated Sine Wave
On Battery Voltage(s) ( Vac )
230 ± 10%
On Battery Frequency ( Hz )
50 ± 1%
60 ± 1%
Automatic Voltage Regulation (AVR)
Single Boost, Single Buck
Overload Protection
Fuse
Outlet(s) – Total
3
Outlet Type
AS x 3
Outlet(s) – Battery & Surge Protected
3
Typical Transfer Time ( ms )
4

BATTERY
Runtime at Half Load ( min )
8
Runtime at Full Load ( min )
1
Typical Recharge Time ( Hours )
8
Start On Battery
Yes
User-replaceable
No
Battery Type
Sealed Lead-acid

SURGE PROTECTION & FILTERING
Surge Suppression ( Joules )
125
EMI/RFI Filtration
Yes
Phone/Network Protection RJ11/RJ45 (Combo)
1-in, 1-out

MANAGEMENT & COMMUNICATIONS
LED Indicators
Power On , Line Mode , Battery Mode , Low Battery
HID Compliant USB Port(s)
1
Serial Port
RS232
Audible Alarms
Battery Mode , Low Battery , Overload , UPS Fault
Management Cable ( pcs )
Power Cord x1 , USB Cable x1
Power Management Software
PowerPanel® Personal
PHYSICAL
Form Factor
Tower
Enclosure Construction
Plastic
Color
Black
PHYSICAL SIZE – UPS MODULE
Dimensions (WxHxD) (in.)
3.937 x 5.512 x 11.811
Dimensions (WxHxD) (mm.)
100 x 140 x 300
Weight (lbs.)
10.14
Weight (kg.)
4.6

ENVIRONMENTAL
Operating Temperature (°F)
32 ~ 104
Operating Temperature (°C)
0 ~ 40
Operating Relative Humidity (Non-condensing) ( % )
0 ~ 90
Operating Elevation ( feet/meters )
0-10,000 feet (0-3,000 meters)
Storage Temperature (°F)
-4 ~ 122
Storage Temperature (°C)
-20 ~ 50
Storage Relative Humidity (Non-condensing) ( % )
0 ~ 90
Storage Elevation ( feet/meters )
0-10,000 feet (0-3,000 meters)
Online Thermal Dissipation ( BTU/hr )
99
Audible Noise at 1.5M from Surface of Unit ( dBA )
40

CERTIFICATIONS
Certifications
CE
RoHS
Yes
